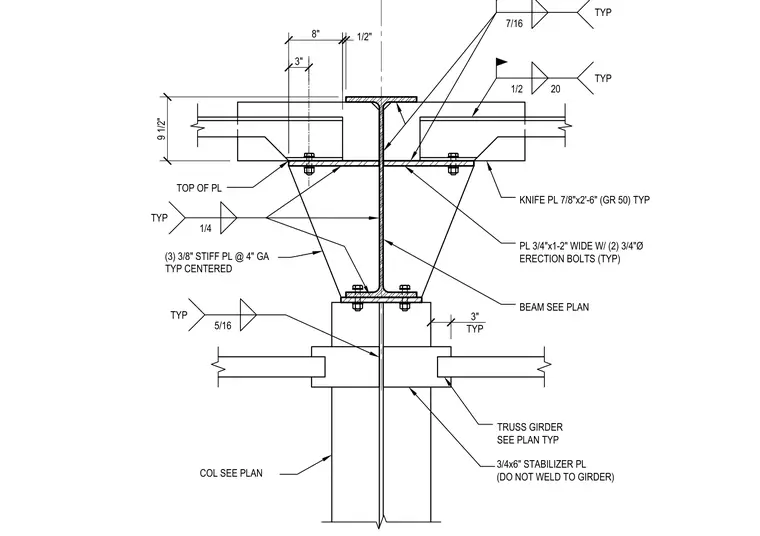

A structural steel beam connects to a column using a 7/8-inch by 2-foot 6-inch Grade 50 knife plate slotted into the framing members. Three 3/8-inch stiffener plates at 4-inch gauge are centered beneath the joint, welded with 1/4-inch fillets. A 3/4-inch by 1-foot 2-inch plate includes two 3/4-inch diameter erection bolts on each side. A 3/4-inch by 6-inch stabilizer plate bridges the truss girder below, left unwelded to the girder as noted. Welds measure 7/16-inch and 5/16-inch at the respective structural intersections.
9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 7/16 TYP 1/2 20 TYP KNIFE PL 7/8"x2'-6" (GR 50) TYP 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
