Cold-formed steel track and studs anchor to a concrete slab and foundation wall using screw anchors. The steel track secures to the concrete substrate maintaining a two and three-quarter inch minimum distance to the edge of the slab. Where attachment occurs at structural steel instead of concrete, Simpson 0.157PDPAT-62KP fasteners are installed at six inches on center. When attaching to a roof deck, four number twelve screws replace each Titen HD anchor. Jamb studs and steel studs frame into the track per structural schedules and notes.

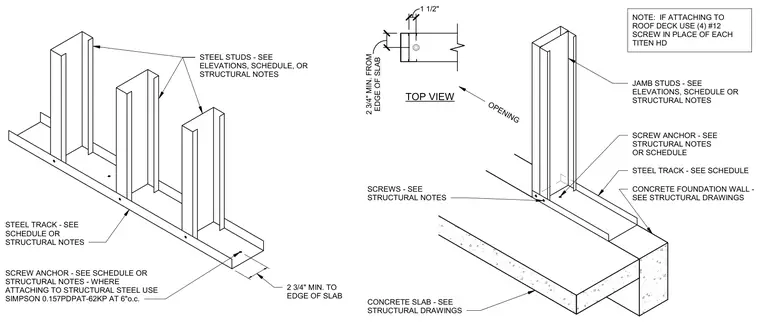

STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES STEEL TRACK - SEE SCHEDULE OR STRUCTURAL NOTES SCREW ANCHOR - SEE SCHEDULE OR STRUCTURAL NOTES - WHERE ATTACHING TO STRUCTURAL STEEL USE SIMPSON 0.157PDPAT-62KP AT 6"o.c. 2 3/4" MIN. TO EDGE OF SLAB SCREW ANCHOR - SEE STRUCTURAL NOTES OR SCHEDULE STEEL TRACK - SEE SCHEDULE CONCRETE SLAB - SEE STRUCTURAL DRAWINGS JAMB STUDS - SEE ELEVATIONS, SCHEDULE OR STRUCTURAL NOTES SCREWS - SEE STRUCTURAL NOTES NOTE: IF ATTACHING TO ROOF DECK USE (4) #12 SCREW IN PLACE OF EACH TITEN HD TOP VIEW OPENING CONCRETE FOUNDATION WALL - SEE STRUCTURAL DRAWINGS EDGE OF SLAB 2 3/4" MIN. FROM 1 1/2"
