Structural · S-6CQ6Q

Drag Strap to Wood Blocking Connection

Elements

About this detail

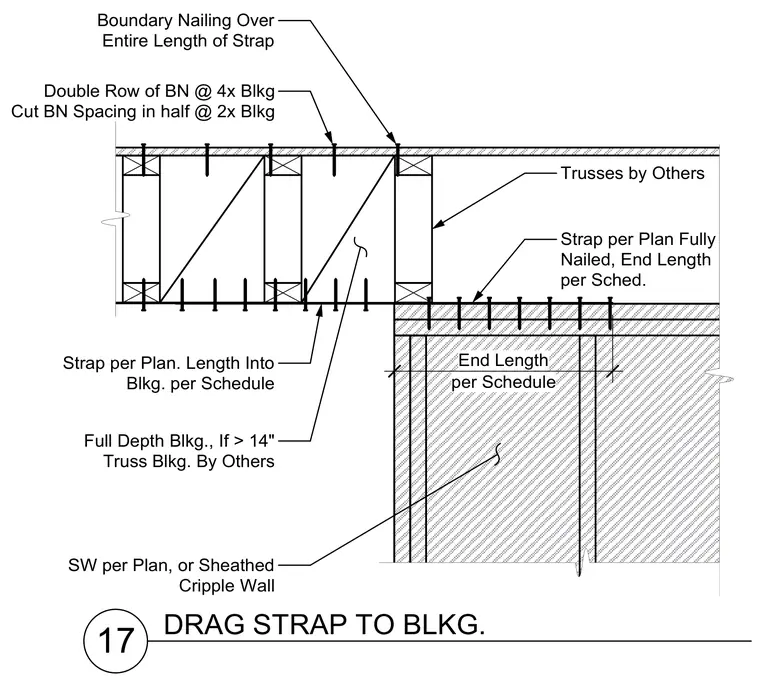

A fully nailed drag strap ties into wood blocking over a sheathed cripple wall with boundary nailing specified per plan. Full depth blocking is provided when the depth exceeds fourteen inches, with trusses and truss blocking supplied by others. A double row of boundary nailing is applied at four-times blocking, and boundary nailing spacing is halved at two-times blocking. The strap extends into the blocking to a length defined by the schedule, with end lengths also determined per schedule.
