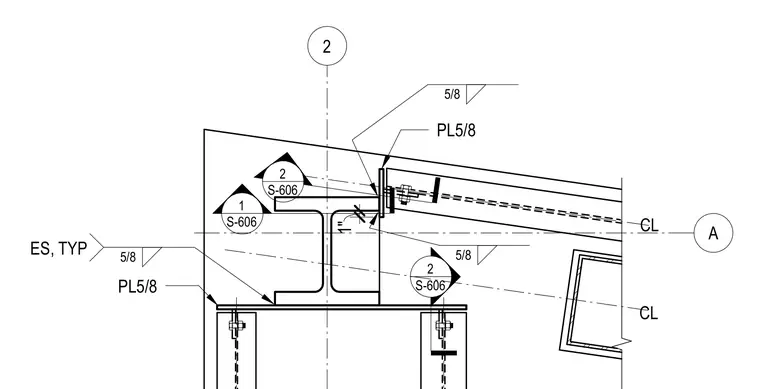

A structural steel beam frames into a supporting assembly utilizing five-eighths-inch thick connection plates. Fillet welds of five-eighths-inch size secure the plate elements to the steel sections typically throughout the assembly. Bolted connections with centered clearances join the framing members along the main structural grid lines.
