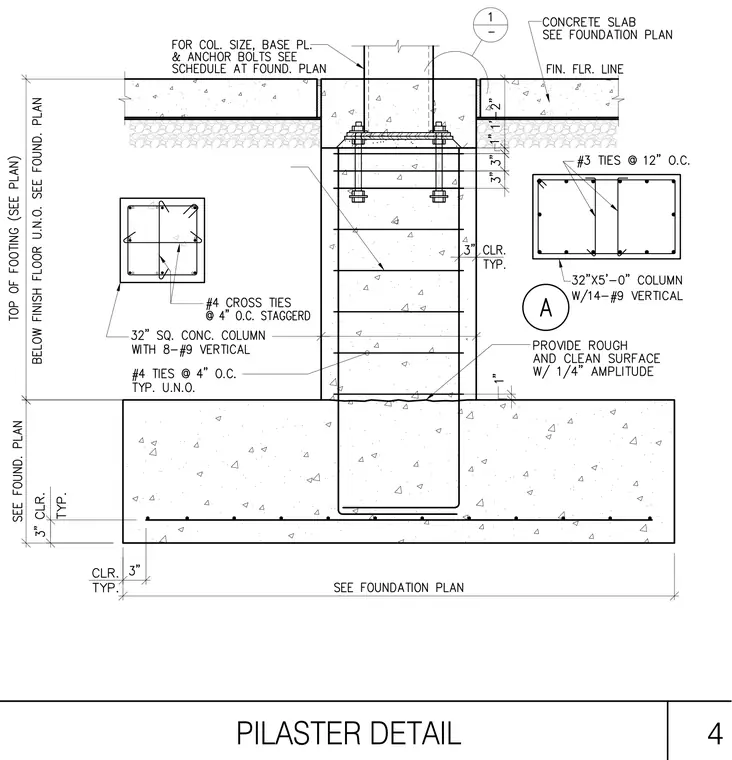

A thirty-two inch square concrete column with eight number nine vertical bars and number four ties at four inches on center, un-noted otherwise, extends down to a concrete footing sized per the foundation plan. The column features a rough and clean surface with one-quarter-inch amplitude where it meets foundation elements. A steel column with anchor bolts and base plate connects at the top of the pilaster, passing through a concrete slab with a finished floor line. Separate cross-section views detail the internal rebar arrangement, including number four cross ties at four inches on center staggered, and number three ties at twelve inches on center.
