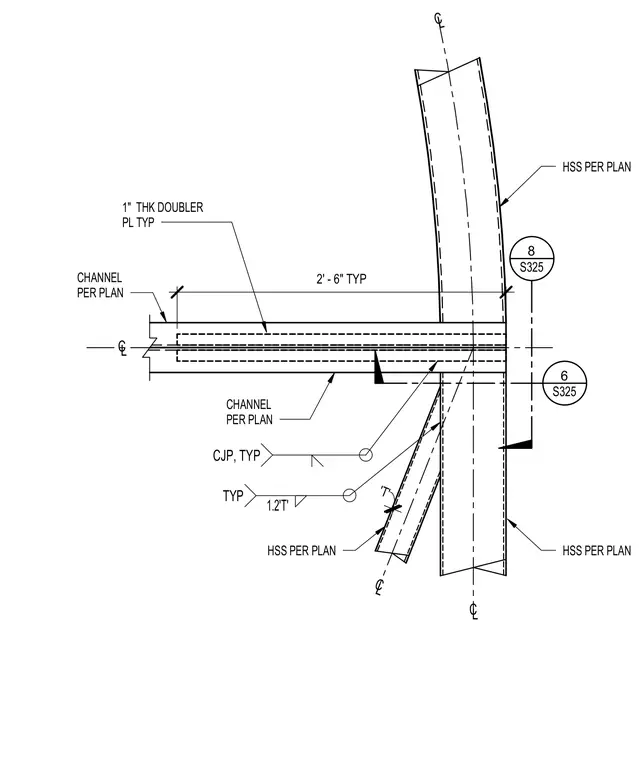

A channel edge member frames into a hollow structural section column with a one-inch thick doubler plate typical. Complete joint penetration welds secure the structural steel components along the connection zones. An inclined HSS member ties into the assembly with typical welded detailing. Centerlines establish alignment for the intersecting members across the framing bay.
HSS PER PLAN CHANNEL PER PLAN CHANNEL PER PLAN HSS PER PLAN HSS PER PLAN C L C L C L C L CJP, TYP 1.2'T' TYP 6 S325 8 S325 2' - 6" TYP 1" THK DOUBLER PL TYP 'T'
