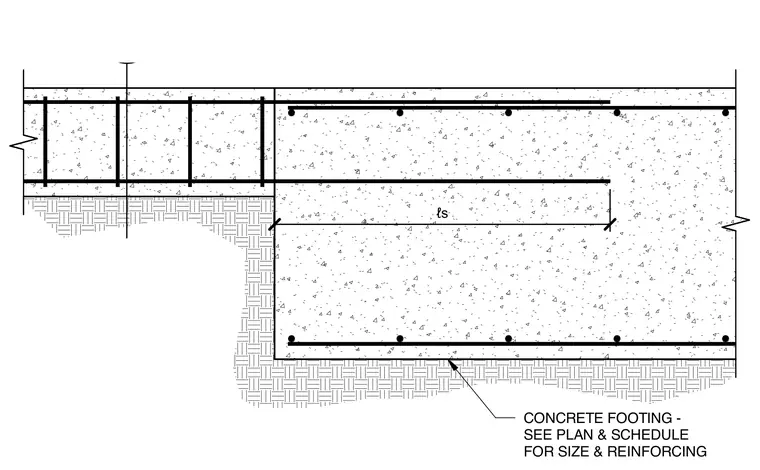

Longitudinal reinforcing bars within a concrete footing overlap at a lap splice length, denoted as ls, to ensure structural continuity. Project structural plans and schedules determine footing size and specific reinforcing bar sizes. Longitudinal bars are positioned within the concrete section, supported by compacted subgrade.
