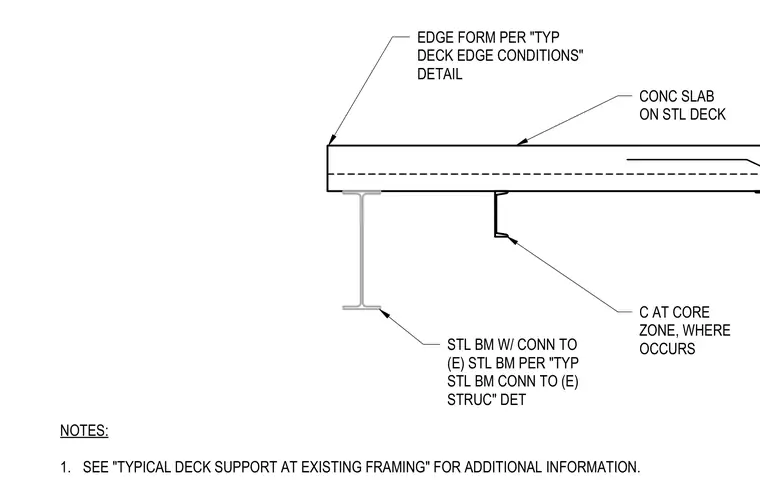

A concrete slab on steel deck bears on a steel beam with a connection to an existing structural steel beam. An edge form is positioned at the slab termination. A channel is located at the core zone where applicable.
C AT CORE ZONE, WHERE OCCURS STL BM W/ CONN TO (E) STL BM PER "TYP STL BM CONN TO (E) STRUC" DET CONC SLAB ON STL DECK EDGE FORM PER "TYP DECK EDGE CONDITIONS" DETAIL NOTES: 1. SEE "TYPICAL DECK SUPPORT AT EXISTING FRAMING" FOR ADDITIONAL INFORMATION.
