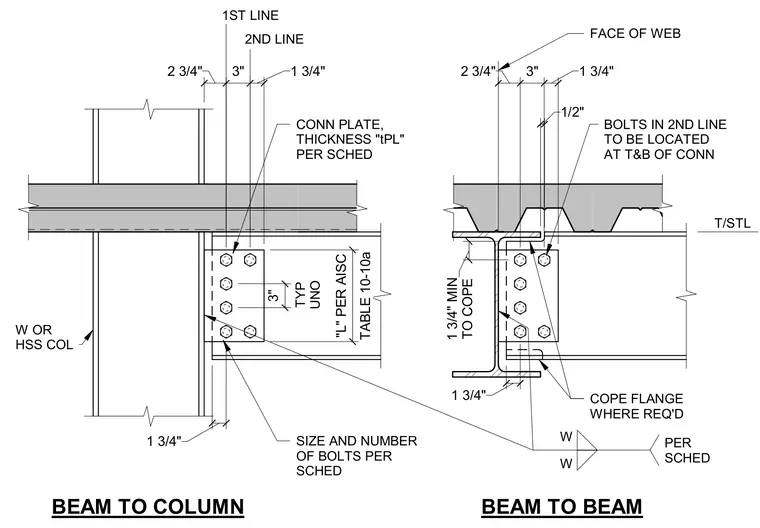

A structural steel framing detail showing bolted connection plates welded to supporting wide flange or hollow structural section columns and wide flange beams. The connection plate thickness, size, and number of bolts are determined per schedule, featuring standard three-inch vertical bolt spacing and specific edge distances. Flanges are coped where required to clear supporting elements with specified minimum clearances. Shop welds attach the connection plate to the support face as indicated per schedule.
T/STL CONN PLATE, THICKNESS "tPL" PER SCHED SIZE AND NUMBER OF BOLTS PER SCHED TYP UNO W W PER SCHED FACE OF WEB COPE FLANGE WHERE REQ'D 1ST LINE 2ND LINE BOLTS IN 2ND LINE TO BE LOCATED AT T&B OF CONN 1 3/4" 2 3/4" 3" 1 3/4" 1 3/4" 2 3/4" 3" 1 3/4" TABLE 10-10a "L" PER AISC 1/2" TO COPE 1 3/4" MIN BEAM TO COLUMN BEAM TO BEAM W OR HSS COL 3"
