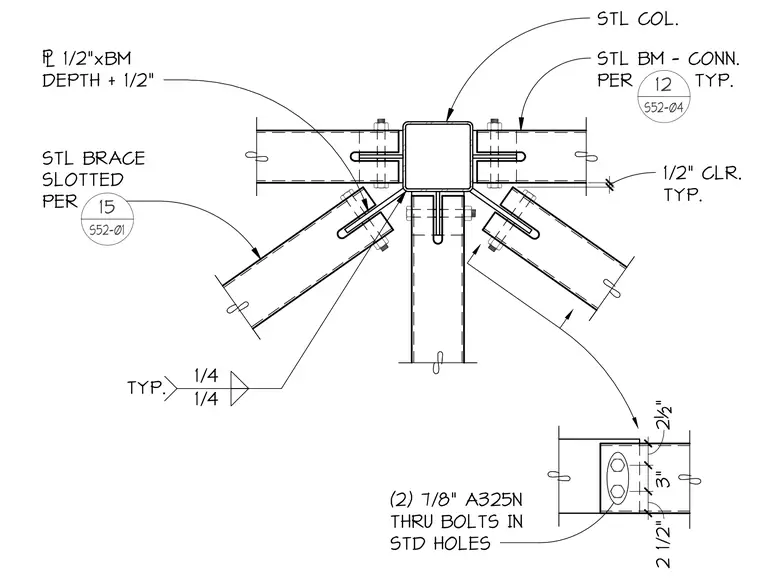

A hollow structural section steel column receives framing from steel beams and diagonal steel braces. The steel brace is slotted per detail 15 on sheet S52-01 and connects via a half-inch plate sized to the beam depth plus a half-inch. Two seven-eighth-inch A325-N through bolts in standard holes secure the connection. A typical one-half-inch clearance is maintained between intersecting members. Fillet welds of one-quarter-inch size are typical at the gusset plate connections.
2 1/2" 3" 2½" (2) 7/8" A325N THRU BOLTS IN STD HOLES STL COL. # 1/2"xBM DEPTH + 1/2" STL BM - CONN. PER TYP. 12 S52-04 STL BRACE SLOTTED PER 15 S52-01 1 /2" 1/2" CLR. TYP. 1/4 1/4 TYP.
