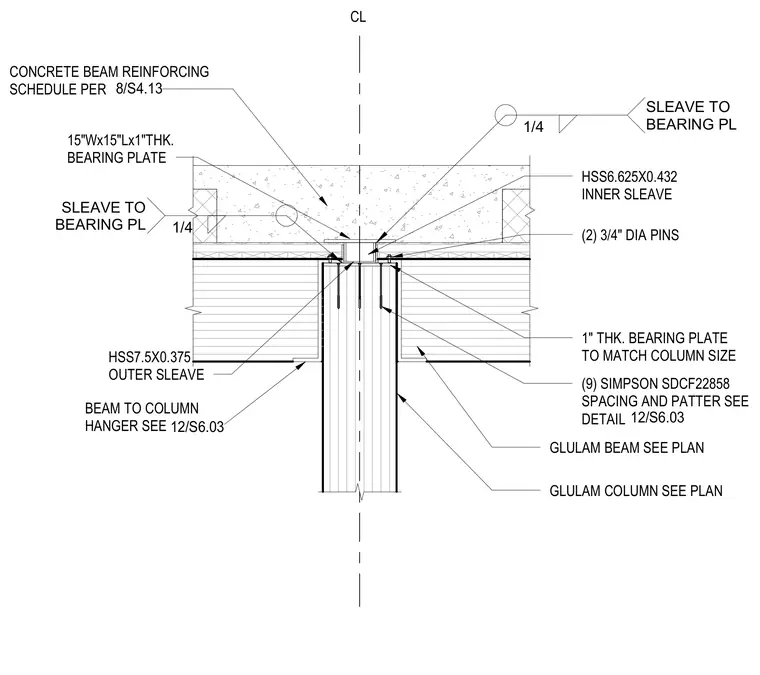

A glulam beam bears on a glulam column with a custom bearing plate sized to match the column width. An inner hollow structural section sleeve of HSS6.625x0.432 and an outer sleeve of HSS7.5x0.375 connect to the bearing plate with a quarter-inch weld. Two three-quarter-inch diameter pins secure the sleeve to the bearing plate assembly. Nine Simpson SDCF22858 fasteners attach the beam to the column hanger following the spacing and pattern shown on the reference detail. A concrete slab sits above the beam with reinforcing per schedule.
CONCRETE BEAM REINFORCING SCHEDULE PER GLULAM BEAM SEE PLAN GLULAM COLUMN SEE PLAN 8/S4.13 CL BEAM TO COLUMN HANGER SEE 12/S6.03 HSS6.625X0.432 INNER SLEAVE HSS7.5X0.375 OUTER SLEAVE 15"Wx15"Lx1"THK. BEARING PLATE 1" THK. BEARING PLATE TO MATCH COLUMN SIZE (2) 3/4" DIA PINS SLEAVE TO BEARING PL 1/4 SLEAVE TO BEARING PL 1/4 (9) SIMPSON SDCF22858 SPACING AND PATTER SEE DETAIL 12/S6.03
