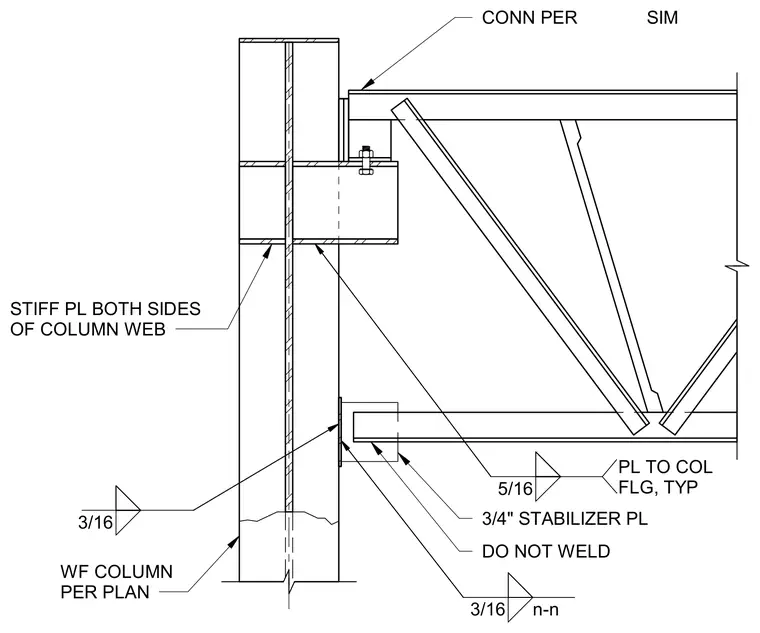

A roof truss connects to a wide-flange column per plan using a three-sixteenths inch weld. A three-quarter-inch stabilizer plate ties the assembly together with a five-sixteenths inch typical fillet weld to the column flange. Stiffener plates are installed on both sides of the column web aligned with the connection. A lower connection point includes a plate welded with a three-sixteenths inch weld, leaving a specified portion left unwelded.
CONN PER 3/16 n-n WF COLUMN PER PLAN 3/4" STABILIZER PL SIM STIFF PL BOTH SIDES OF COLUMN WEB 5/16 PL TO COL FLG, TYP 3/16 DO NOT WELD
