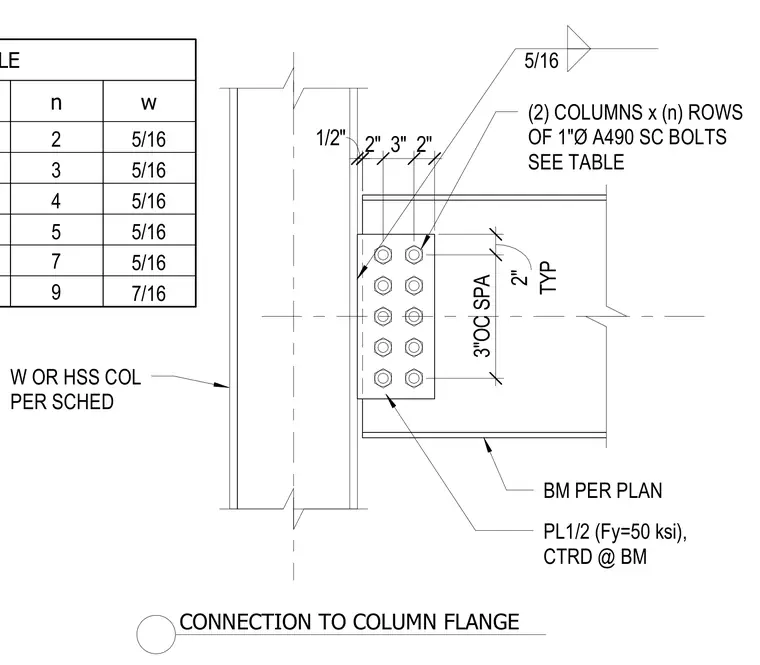

A wide-flange beam frames into a wide-flange or hollow structural section column flange using a welded shear plate connection. A half-inch thick plate with a yield strength of fifty ksi is centered on the beam web and welded to the column. Two columns by n rows of one-inch diameter A490 slip-critical bolts fasten the beam web to the shear plate. A companion schedule dictates the number of bolt rows and corresponding fillet weld sizes ranging from five-sixteenths to seven-sixteenths of an inch.
1/2" 2" 3" 2" TYP 2" 3"OC SPA W OR HSS COL PER SCHED BM PER PLAN TABLE n 4 5 5/16 (2) COLUMNS x (n) ROWS OF 1"Ø A490 SC BOLTS SEE TABLE PL1/2 (Fy=50 ksi), CTRD @ BM CONNECTION TO COLUMN FLANGE 7 3 2 9 w 5/16 5/16 5/16 5/16 5/16 7/16
