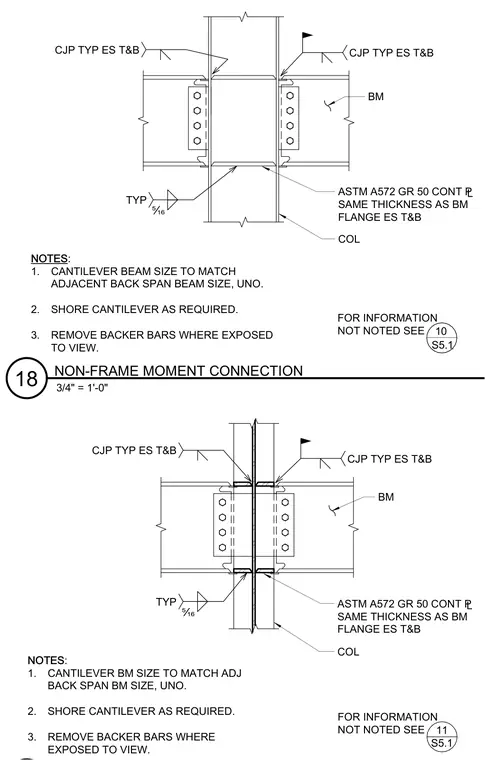

Steel beams frame into opposite sides of a steel column with complete joint penetration groove welds on the top and bottom flanges. Shear tabs bolted to the beam webs provide vertical support during erection. Continuous plates matching the thickness of the beam flanges are welded to each side of the column web at the top and bottom flange alignments. Backer bars are removed where exposed to view. Cantilever beam sizes match adjacent back span beam sizes unless otherwise noted.
BM COL CJP TYP ES T&B ASTM A572 GR 50 CONT £ SAME THICKNESS AS BM FLANGE ES T&B Ì TYP CJP TYP ES T&B NOTES : 1. CANTILEVER BM SIZE TO MATCH ADJ BACK SPAN BM SIZE, UNO. 2. SHORE CANTILEVER AS REQUIRED. 3. REMOVE BACKER BARS WHERE EXPOSED TO VIEW. FOR INFORMATION NOT NOTED SEE 11 S5.1 BM COL CJP TYP ES T&B ASTM A572 GR 50 CONT £ SAME THICKNESS AS BM FLANGE ES T&B Ì TYP CJP TYP ES T&B NOTES : 1. CANTILEVER BEAM SIZE TO MATCH ADJACENT BACK SPAN BEAM SIZE, UNO. 2. SHORE CANTILEVER AS REQUIRED. 3. REMOVE BACKER BARS WHERE EXPOSED TO VIEW. 10 S5.1 ___________ FOR INFORMATION NOT NOTED SEE 3/4" = 1'-0" 18 NON-FRAME MOMENT CONNECTION
