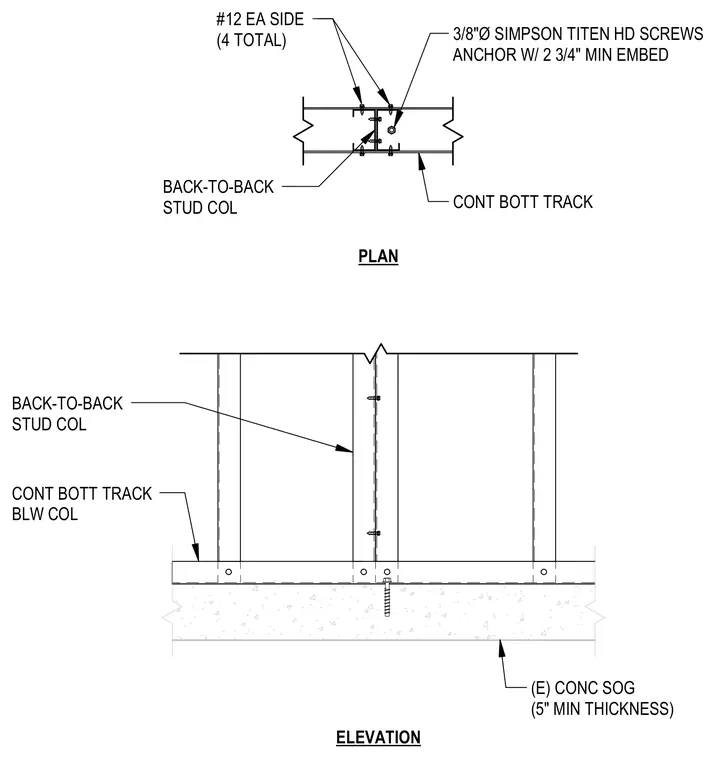

A back-to-back cold-formed steel stud column bears on a continuous bottom track located above an existing concrete slab on grade with a minimum five-inch thickness. The stud column assembly is secured using number twelve screws on each side, with four total screws connecting the back-to-back members. A three-eighths-inch diameter Simpson Titen HD screw anchor with a minimum two-and-three-quarter-inch embedment anchors the assembly to the concrete slab below.
#12 EA SIDE (4 TOTAL) CONT BOTT TRACK BACK-TO-BACK STUD COL 3/8"Ø SIMPSON TITEN HD SCREWS ANCHOR W/ 2 3/4" MIN EMBED (E) CONC SOG (5" MIN THICKNESS) CONT BOTT TRACK BLW COL BACK-TO-BACK STUD COL PLAN ELEVATION
