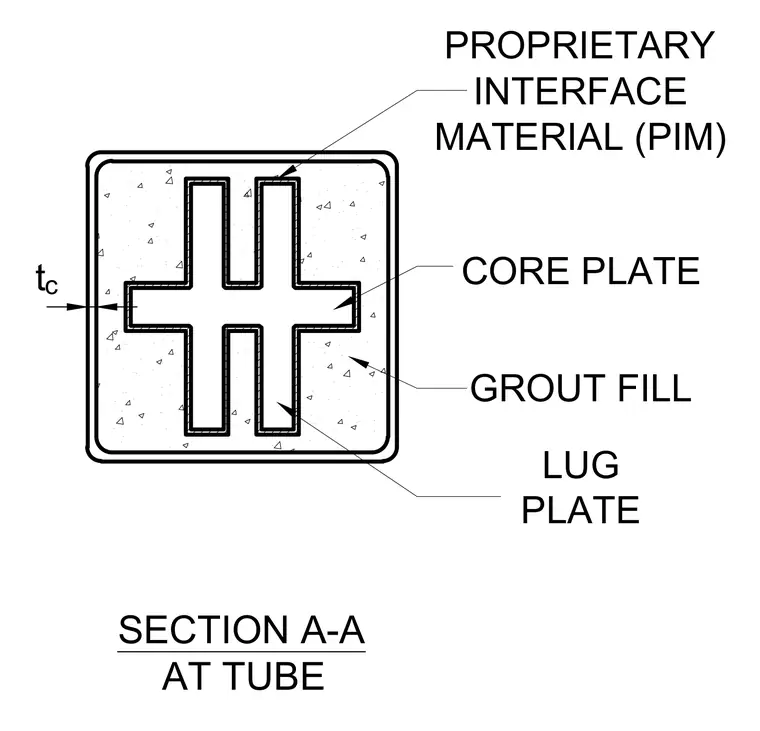

This cross-section details a structural connection featuring a core plate flanked by lug plates inside a hollow structural section tube. A proprietary interface material lines the interior interface between the steel plates and the surrounding grout fill. The core plate and lug plate assembly are embedded within the grout fill which consolidates the interior of the tube.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c GROUT FILL CORE PLATE SECTION A-A AT TUBE
