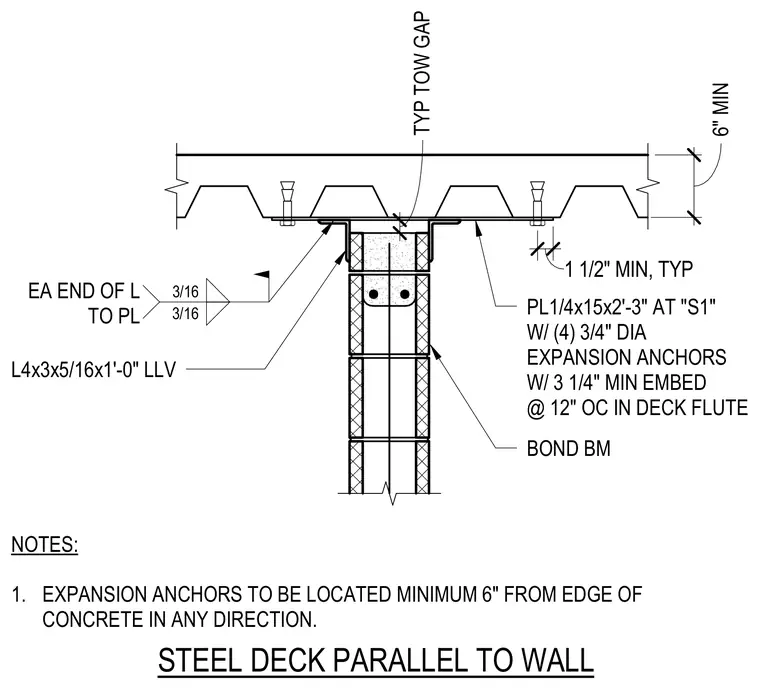

A quarter-inch by fifteen-inch by two-foot three-inch plate designated as S1 is secured with four three-quarter-inch diameter expansion anchors with a three-and-a-quarter-inch minimum embedment at twelve inches on center in the deck flute. A four-by-three-by-five-sixteenth-inch angle with a one-foot length is welded to the plate with three-sixteenth-inch fillet welds at each end of the angle. A bond beam wall supports the assembly, maintaining a typical steel deck parallel to wall gap of one and a quarter inches. Expansion anchors must be located a minimum of six inches from the edge of the concrete in any direction.
PL1/4x15x2'-3" AT "S1" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" MIN EMBED @ 12" OC IN DECK FLUTE BOND BM L4x3x5/16x1'-0" LLV EA END OF L TO PL 3/16 3/16 STEEL DECK PARALLEL TO WALL 1 1/2" MIN, TYP TYP TOW GAP 1 1/4" 6" 6" MIN NOTES: 1. EXPANSION ANCHORS TO BE LOCATED MINIMUM 6" FROM EDGE OF CONCRETE IN ANY DIRECTION.
