Structural · S-6A8TM

Steel Joist Bearing and HSS Bridging at Steel Beam

Materials

Steel Metal (misc.)

Elements

Beams Roofs Decks

Connections

Bolted Connection

About this detail

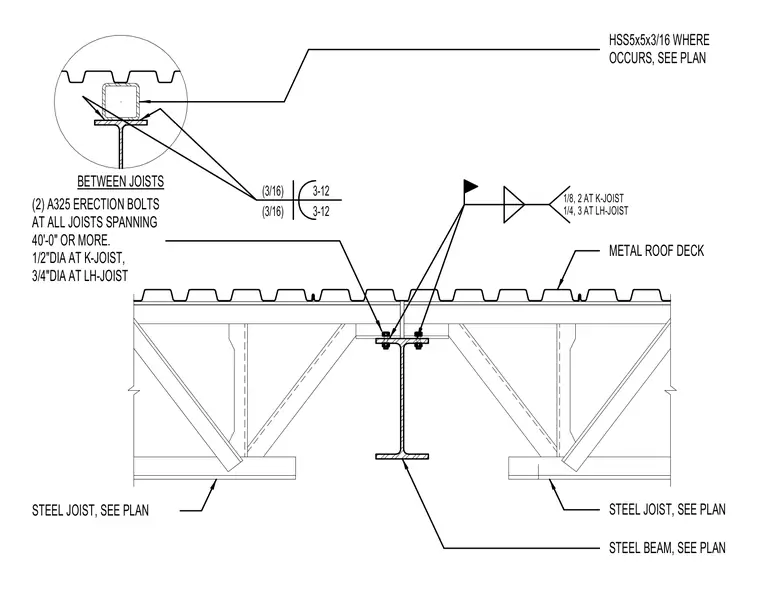

Steel joists bear upon a supporting structural steel beam, carrying a metal roof deck above. An HSS5x5x3/16 hollow structural section occurs between joists where indicated on the structural plans. Two A325 erection bolts are required at all joists spanning forty feet or more, utilizing half-inch diameter bolts at K-series joists and three-quarter-inch diameter bolts at long-span LH-series joists. Fillet welds connect the assembly components, with sizing specified as one-eighth inch for two passes at K-series joists and one-quarter inch for three passes at long-span joists.
