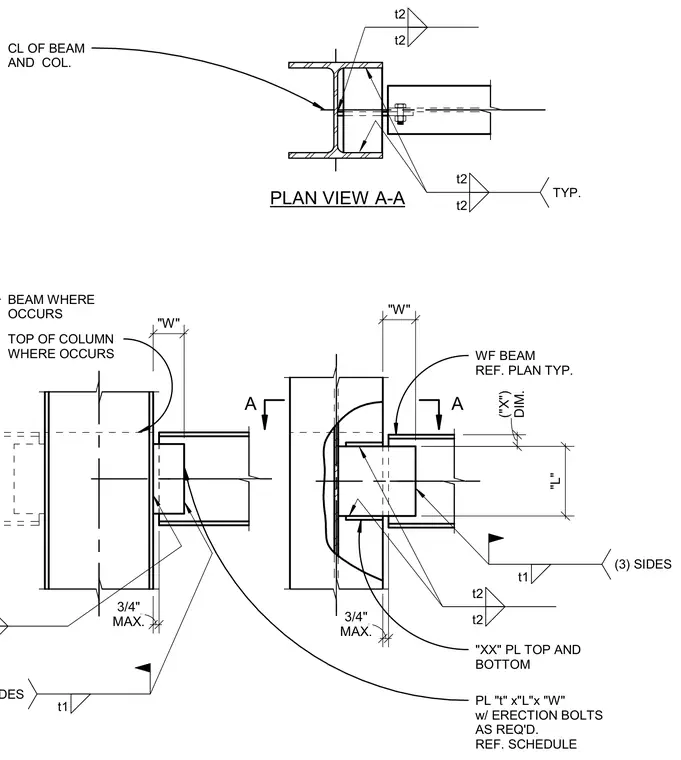

A wide-flange beam connects to a structural steel column flange using custom plates welded to the top and bottom flanges. A web plate of dimensions "t" x "L" x "W" is secured with erection bolts as required per schedule. Fillet welds of sizes t1 and t2 connect the plates to the members on three sides. A maximum three-quarter-inch clearance is maintained at the column face. Centerlines of the beam and column align with standard dimensional tolerances.
PLAN VIEW A-A t2 t2 t2 t2 TYP. CL OF BEAM AND COL. "W" DIM. ("X") "L" TOP OF COLUMN WHERE OCCURS t2 t2 WF BEAM REF. PLAN TYP. "XX" PL TOP AND BOTTOM MAX. 3/4" A A MAX. 3/4" t1 (3) SIDES PL "t" x"L"x "W" w/ ERECTION BOLTS AS REQ'D. REF. SCHEDULE t1 (3) SIDES "W" BEAM WHERE OCCURS
