Continuity plates are welded to the steel column web and flanges aligned with the strong axis, extending flush with the column flange edge. Weld tabs must be removed, and the weld ends ground smooth to 500 micro-inches surface roughness without gouging the column flange. A minimum one-half inch radius is provided at the plate corner. All welding must avoid the K-area of the column.

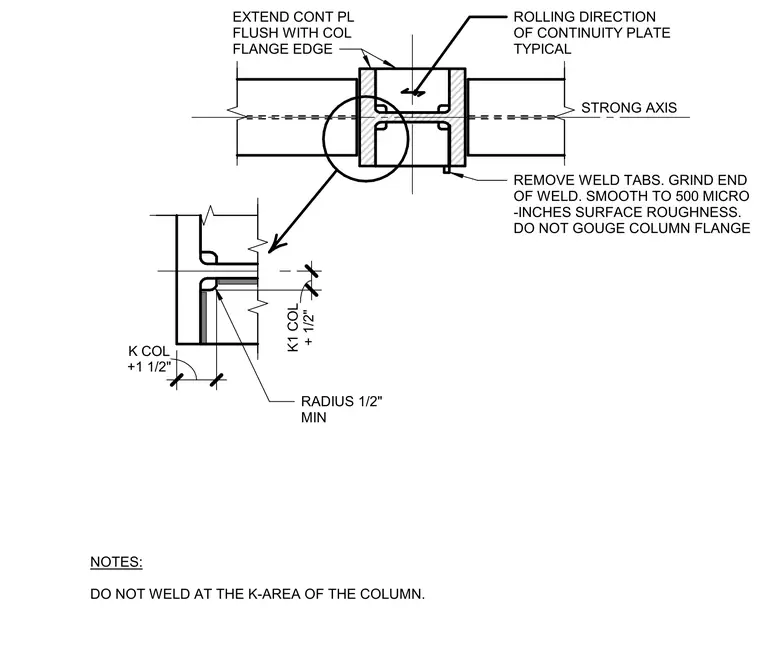

RADIUS 1/2" MIN STRONG AXIS ROLLING DIRECTION OF CONTINUITY PLATE TYPICAL REMOVE WELD TABS. GRIND END OF WELD. SMOOTH TO 500 MICRO -INCHES SURFACE ROUGHNESS. DO NOT GOUGE COLUMN FLANGE EXTEND CONT PL FLUSH WITH COL FLANGE EDGE +1 1/2" K COL + 1/2" K1 COL NOTES: DO NOT WELD AT THE K-AREA OF THE COLUMN.
