Reinforcing bar placement occurs at concrete masonry unit wall corners and intersections. Number five vertical bars are positioned at the center of the wall with one inch of clear space for two-bar reinforcement. Corner bars of size number five are provided for each bond beam bar, extending three feet in each direction. A typical wall section details the bond beam and vertical bar layout.

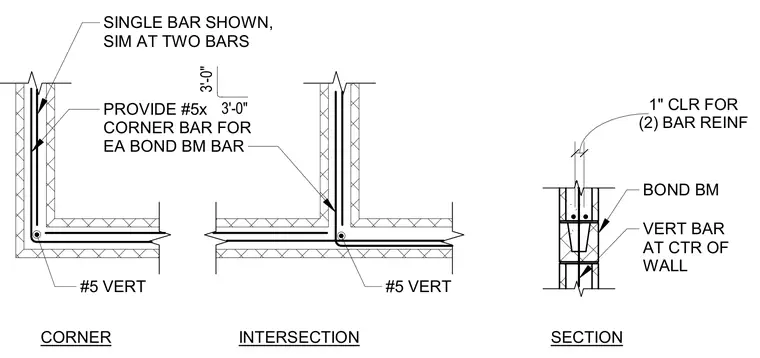

INTERSECTION CORNER PROVIDE #5x CORNER BAR FOR EA BOND BM BAR #5 VERT #5 VERT SINGLE BAR SHOWN, SIM AT TWO BARS 3'-0" 3'-0" BOND BM VERT BAR AT CTR OF WALL (2) BAR REINF 1" CLR FOR SECTION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
