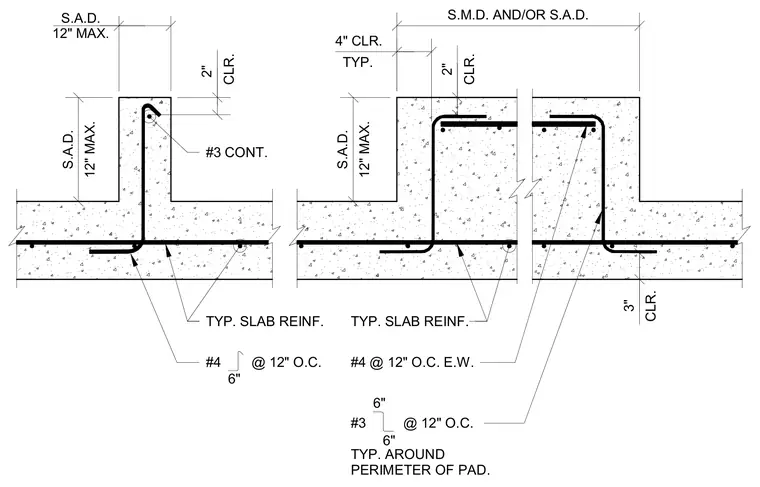

Concrete curb and raised pad sections showing slab reinforcement, dowels, and concrete clearances. The slab features typical number four reinforcing bars at twelve inches on center each way. Curb sections include continuous number three reinforcement at the top and number four dowels spaced at twelve inches on center with six-inch hooks. Clearances are detailed at two inches for top bar protection and three to four inches at the base. S.A.D. and S.M.D. dimensions specify a maximum height of twelve inches for the raised elements.
12" MAX. S.A.D. 12" MAX. S.A.D. 12" MAX. S.A.D. S.M.D. AND/OR S.A.D. #3 CONT. TYP. SLAB REINF. #4 @ 12" O.C. 6" TYP. SLAB REINF. #4 @ 12" O.C. E.W. #3 @ 12" O.C. TYP. AROUND PERIMETER OF PAD. 6" 6" CLR. CLR. 2" CLR. 2" 4" CLR. TYP. 3"
