Structural · S-69SJ9

Reinforcing Bar Welding Details and Schedule

Materials

Metal (misc.)

Elements

Reinforcing Roof / Floor Openings

Connections

Welded Connection

About this detail

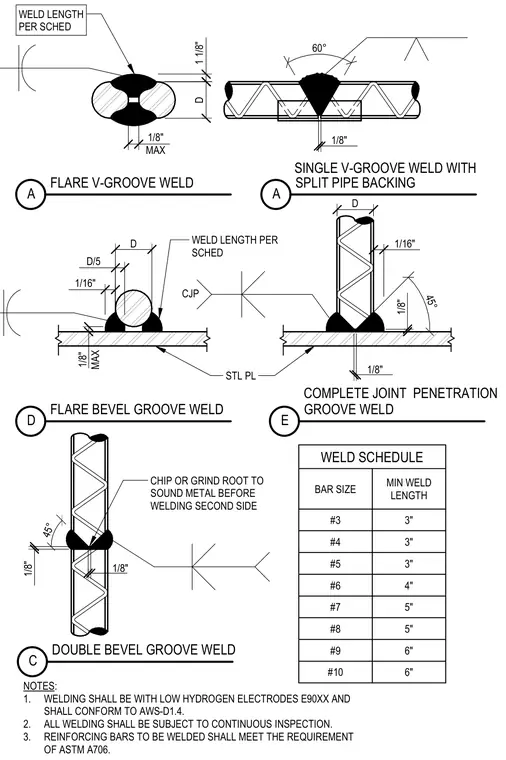

Standard welded splice configurations for reinforcing bars include flare V-groove, single V-groove with split pipe backing, flare bevel groove, complete joint penetration groove weld, and double bevel groove welds. Each detail provides geometric parameters, root openings, bevel angles, weld lengths, and steel plate connections. The accompanying weld schedule specifies minimum weld lengths for bar sizes ranging from number 3 through number 10. General notes mandate low hydrogen electrodes E90xx conforming to AWS-D1.4, continuous inspection during welding, and the use of ASTM A706 weldable reinforcing bars.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
