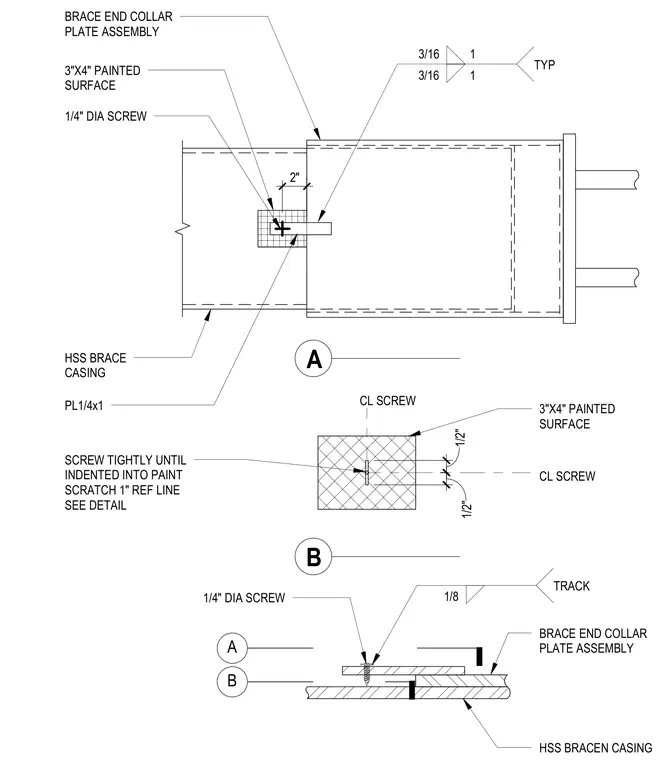

A brace end collar plate assembly connects to a hollow structural section brace casing. The connection incorporates a three-inch by four-inch painted surface scratch plate fastened with a quarter-inch diameter screw. The screw is tightened until indented into the paint scratch reference line. A one-quarter-inch thick by one-inch plate is welded with three-sixteenth-inch fillet welds typically. An eighth-inch track connects to the brace end collar plate assembly using a quarter-inch diameter screw.
A B 3"X4" PAINTED SURFACE BRACE END COLLAR PLATE ASSEMBLY PL1/4x1 HSS BRACE CASING CL SCREW CL SCREW SCREW TIGHTLY UNTIL INDENTED INTO PAINT SCRATCH 1" REF LINE SEE DETAIL BRACE END COLLAR PLATE ASSEMBLY HSS BRACEN CASING 1/4" DIA SCREW 1/4" DIA SCREW 3"X4" PAINTED SURFACE A B 2" 1/2" 1/2" 3/16 1 3/16 1 TYP 1/8 TRACK
