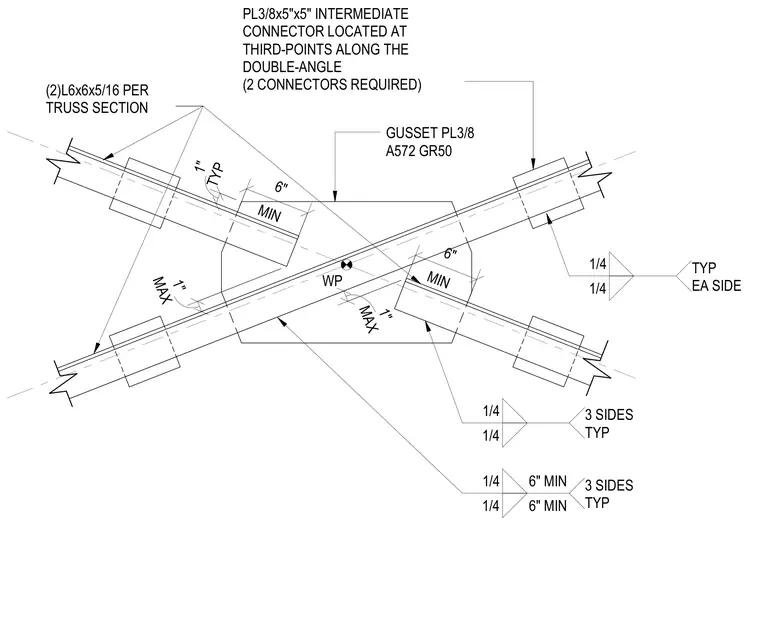

Two pairs of angles designated as (2) L6x6x5/16 cross at a work point and connect via a 3/8-inch thick ASTM A572 Grade 50 gusset plate. Two intermediate plate connectors measuring 3/8 by 5 by 5 inches are located at the third-points along the double-angle members, with two connectors required. Fillet welds of 1/4-inch size are specified on three sides typically, with 1/4-inch welds typically on each side for the intermediate connectors.
WP GUSSET PL3/8 A572 GR50 (2)L6x6x5/16 PER TRUSS SECTION PL3/8x5"x5" INTERMEDIATE CONNECTOR LOCATED AT THIRD-POINTS ALONG THE DOUBLE-ANGLE (2 CONNECTORS REQUIRED) TYP 1" MIN 6" MIN 6" MAX 1" MAX 1" 1/4 1/4 3 SIDES TYP 1/4 6" MIN 1/4 6" MIN 3 SIDES TYP 1/4 1/4 TYP EA SIDE
