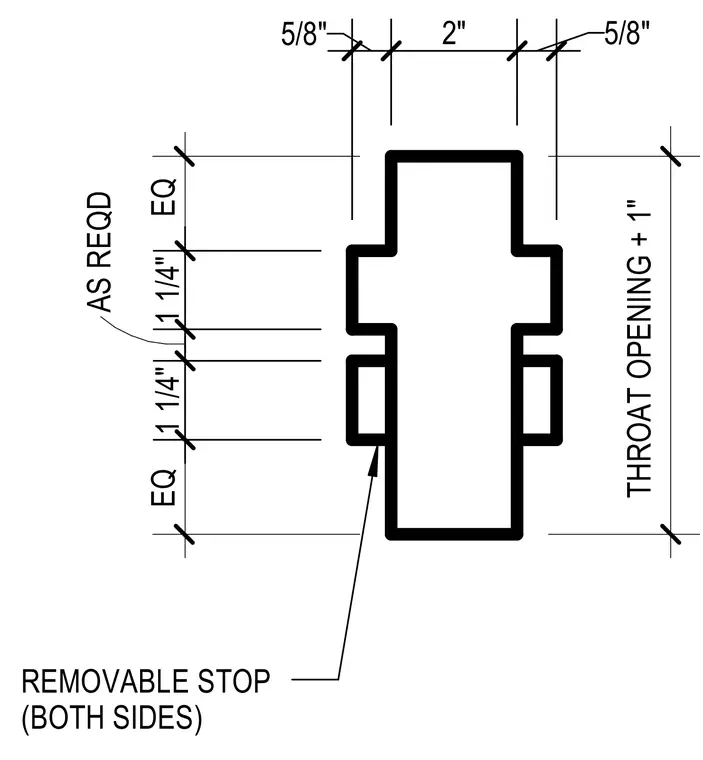

Glass-to-glass mullion assembly featuring removable stops on both sides as required. The profile is dimensioned with a 2-inch central width, 5/8-inch projections, 1-1/4-inch segments, and an overall height of throat opening plus 1 inch with equal spacing at top and bottom.
THROAT OPENING + 1" 5/8" 2" 5/8" 1 1/4" 1 1/4" EQ EQ REMOVABLE STOP (BOTH SIDES) AS REQD
