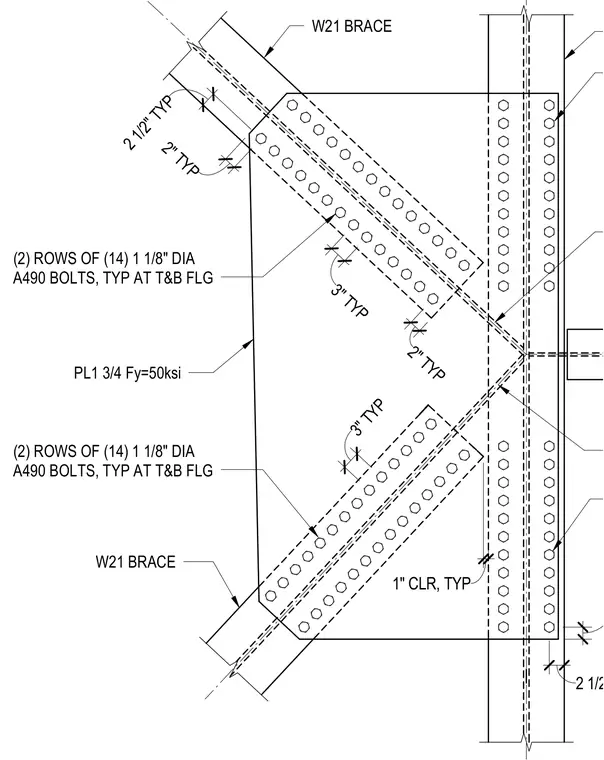

Diagonal W21 steel brace members connect to a heavy steel column via a large gusset plate designated as plate 1-3/4 inches thick with a yield strength of 50 ksi. Two rows of fourteen 1-1/8-inch diameter A490 bolts fasten each brace flange to the gusset plate. The connection maintains a typical 1-inch clearance between the converging brace ends. Additional vertical rows of bolts secure the gusset plate directly to the supporting column flange.
3" TYP W21 BRACE 2 1/2" TYP (2) ROWS OF (14) 1 1/8" DIA A490 BOLTS, TYP AT T&B FLG PL1 3/4 Fy=50ksi (2) ROWS OF (14) 1 1/8" DIA A490 BOLTS, TYP AT T&B FLG W21 BRACE 1" CLR, TYP 2" TYP 2 1/2" TYP 3" TYP 2" TYP
