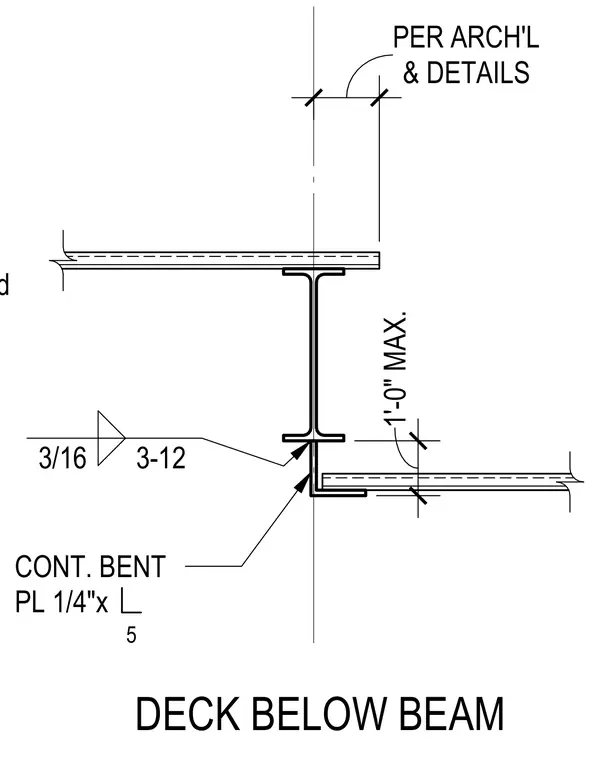

A continuous bent plate measuring one-quarter inch by five inches connects the metal deck assembly below the bottom flange of a steel beam. The bent plate is secured with a three-sixteenths-inch fillet weld spaced at three to twelve inches. The vertical offset between the top of the deck and the beam bottom flange is limited to a maximum of one foot zero inches.
DECK BELOW BEAM 3/16 3-12 CONT. BENT PL 1/4"x 5 cont. butt weld 1'-0" MAX. & DETAILS PER ARCH'L
