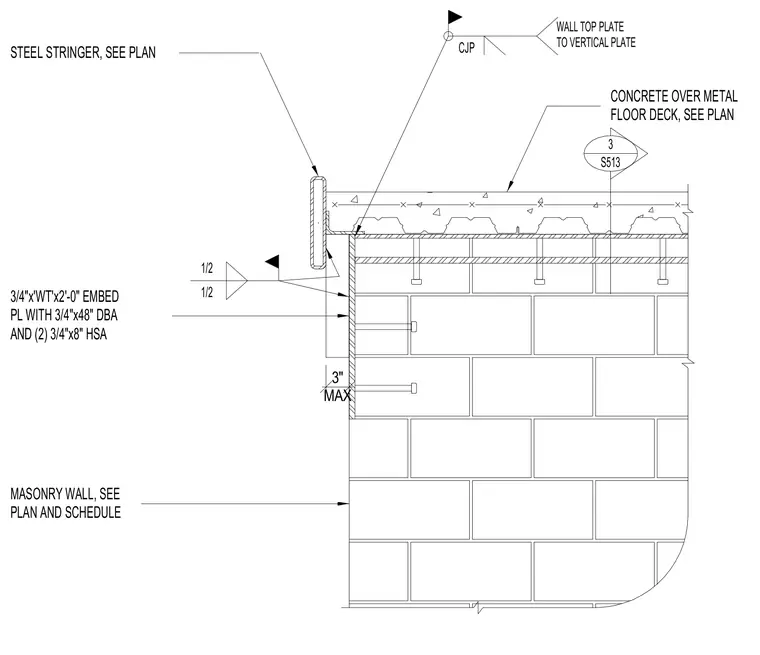

A steel stair stringer bears against a masonry wall and concrete-filled metal floor deck. The steel stringer connects via a complete joint penetration weld to a vertical plate, which is anchored to a three-quarter-inch thick embed plate. The embed plate is secured with a three-quarter-inch by forty-eight-inch deformed bar anchor and two three-quarter-inch by eight-inch headed stud anchors embedded in the masonry wall. Concrete over metal floor deck bears on the top plate assembly, sized per plan.
CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL STRINGER, SEE PLAN MASONRY WALL, SEE PLAN AND SCHEDULE CJP WALL TOP PLATE TO VERTICAL PLATE 3/4"x'WT'x2'-0" EMBED PL WITH 3/4"x48" DBA AND (2) 3/4"x8" HSA 1/2 1/2 3 S513 3" MAX
