Structural · S-68JYE

Double and Single Beam Connections at Column

Materials

Steel Timber / Wood

Elements

Beams Roofs Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Bolted Connection Rebar Splice / Development

About this detail

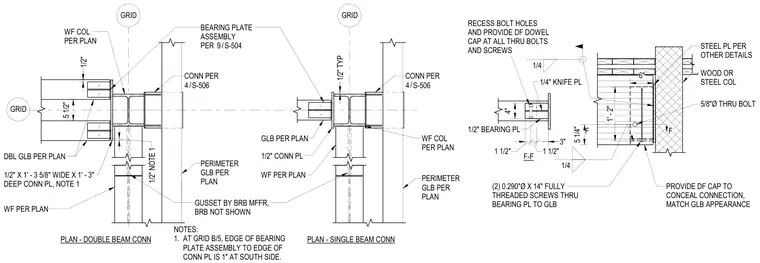

Double and single glue-laminated timber beams frame into wide-flange columns with associated bearing plate assemblies and connection plates. The assembly utilizes a one-half-inch connection plate welded to the column, with double glue-laminated beams secured via bearing plate assemblies and perimeter members as sized per plan. A separate section detail has a one-quarter-inch knife plate embedded into the wood member, fastened using two zero-point-two-nine-inch diameter by fourteen-inch fully threaded screws through the bearing plate to the glue-laminated beam. Five-eighths-inch diameter through bolts secure the steel-to-timber interface, with bolt holes recessed and plugged using Douglas fir dowel caps to match the surrounding wood appearance. A Douglas fir cap is provided to conceal the overall connection.
