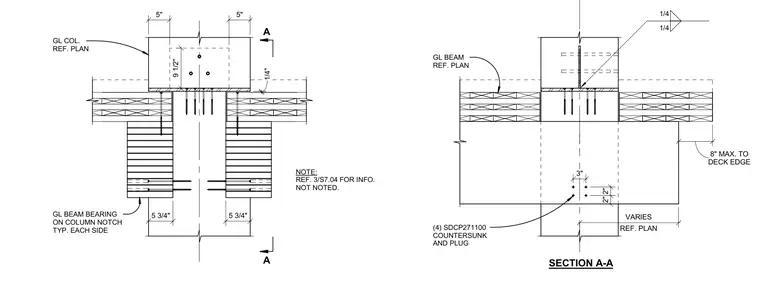

Double glue-laminated beams bear on a notched glue-laminated column on each side, maintaining a maximum distance of eight inches to the deck edge. Four SDCP271100 countersunk fasteners with plugs anchor the connection, supplemented by fillet welds sized at one-quarter inch as indicated. Additional framing information is referenced on sheet S7.04 for conditions not explicitly noted.
SECTION A-A NOTE: REF. 3/S7.04 FOR INFO. NOT NOTED. A 5 3/4" REF. PLAN VARIES 1/4" GL BEAM BEARING ON COLUMN NOTCH TYP. EACH SIDE DECK EDGE 8" MAX. TO (4) SDCP271100 COUNTERSUNK AND PLUG 2" 2" 3" GL BEAM REF. PLAN GL COL. REF. PLAN 1/4 1/4 9 1/2" A 5 3/4" 5" 5"
