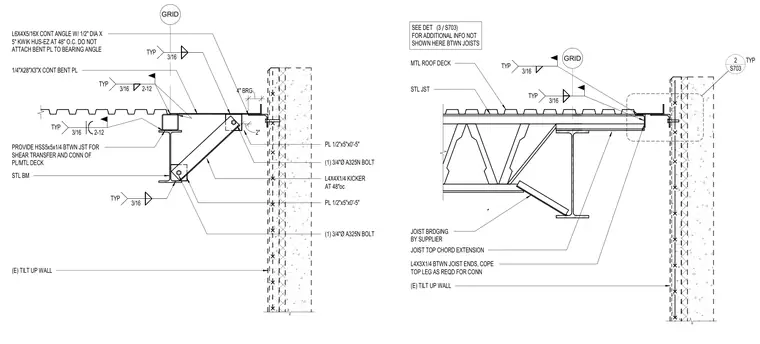

Roof joist bridging connects to a steel beam and an existing tilt-up concrete wall. A continuous bent plate measuring 1/4" by 28" by 3" is anchored to the wall with a continuous angle secured by 1/2" diameter by 5" Kwik Hus-Ez anchors at 48" on center, with the bent plate left unattached to the bearing angle. An HSS 5x5x1/4 member is provided between the joists for shear transfer and connection of the plate and metal deck. Steel joists support a metal roof deck, featuring an L4x3x1/4 angle between joist ends with the top leg coped as required for connection. L4x4x1/4 kickers are placed at 48" on center, connected via 1/2" by 5" plates and single 3/4" diameter A325N bolts.
GRID STL BM (E) TILT UP WALL 4" BRG 1/4"X28"X3"X CONT BENT PL L6X4X5/16X CONT ANGLE W/ 1/2" DIA X 5" KWIK HUS-EZ AT 48" O.C. DO NOT ATTACH BENT PL TO BEARING ANGLE PROVIDE HSS5x5x1/4 BTWN JST FOR SHEAR TRANSFER AND CONN OF PL/MTL DECK 3/16 2-12 TYP PL 1/2"x5"x0'-5" (1) 3/4"Ø A325N BOLT 3/16 TYP 3/16 2-12 TYP PL 1/2"x5"x0'-5" (1) 3/4"Ø A325N BOLT L4X4X1/4 KICKER AT 48"oc 3/16 TYP 2" GRID (E) TILT UP WALL JOIST BRDGING BY SUPPLIER MTL ROOF DECK STL JST S703 2 TYP JOIST TOP CHORD EXTENSION L4X3X1/4 BTWN JOIST ENDS, COPE TOP LEG AS REQD FOR CONN SEE DET FOR ADDITIONAL INFO NOT SHOWN HERE BTWN JOISTS / (3 S703) 3/16 TYP 3/16 TYP
