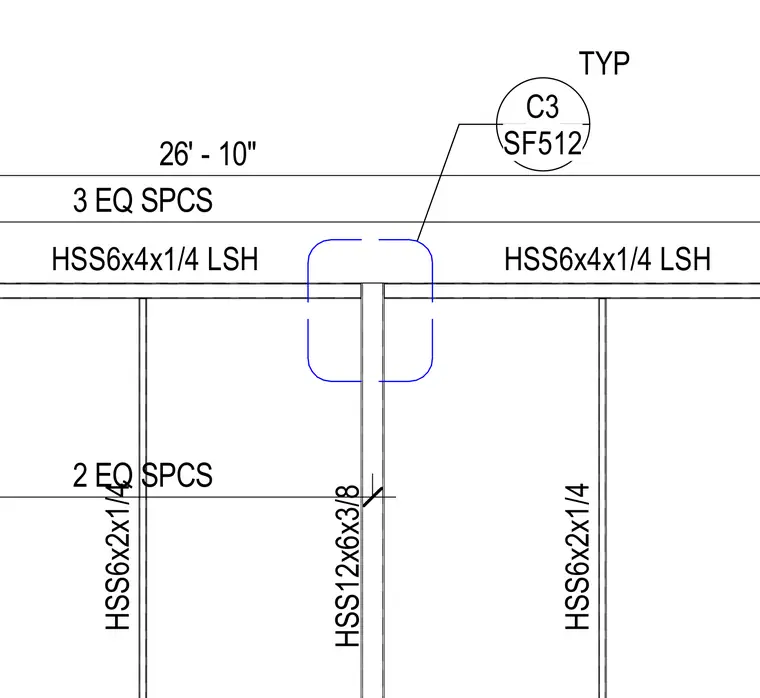

This structural framing layout features an HSS12x6x3/8 hollow structural section column supporting horizontal HSS6x4x1/4 members with three equal spaces at a length of 26 feet 10 inches. Vertical HSS6x2x1/4 members are positioned below with two equal spaces typically. The assembly provides structural support utilizing standard rectangular hollow structural sections.
HSS12x6x3/8 HSS6x4x1/4 LSH HSS6x4x1/4 LSH HSS6x2x1/4 HSS6x2x1/4 26' - 10" 3 EQ SPCS 2 EQ SPCS SF512 C3 TYP
