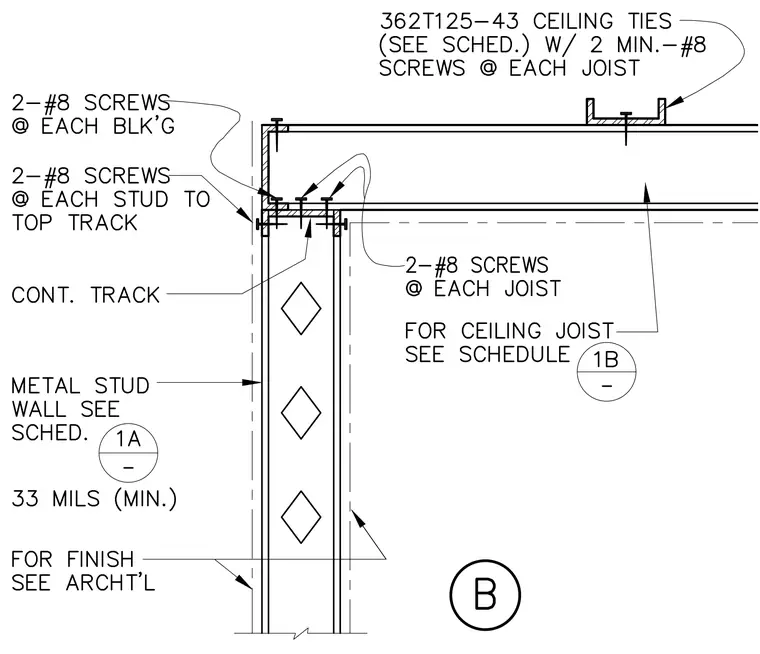

A cold-formed metal stud wall supports a ceiling joist assembly through a continuous top track connected with two number 8 screws at each joist and stud. The metal stud wall is sized per the schedule with a minimum thickness of 33 mils, featuring blocking secured with two number 8 screws at each block. Ceiling ties consisting of 362T125-43 sections attach to the top of the ceiling joists with a minimum of two number 8 screws at each joist. Wall finishes are coordinated per the architectural drawings.
