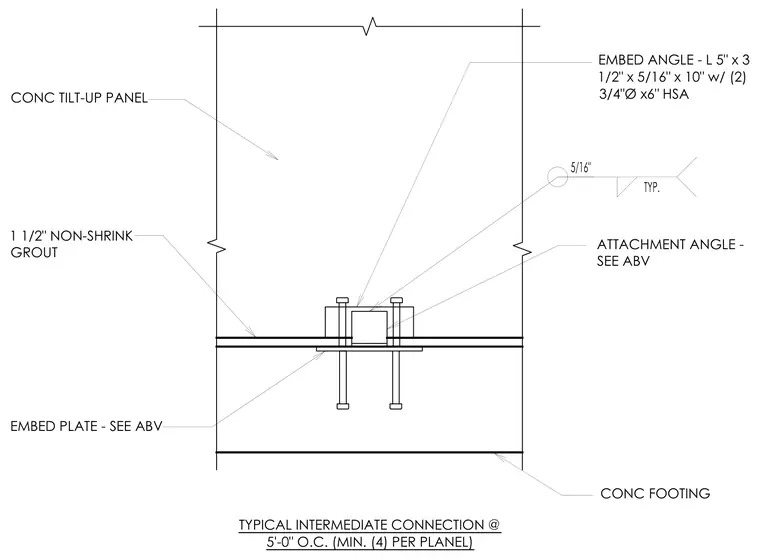

A concrete tilt-up panel bears on a concrete footing with a one-and-a-half-inch non-shrink grout layer in between. An embed plate anchors into the footing, while an embed angle measuring five by three-and-a-half by five-sixteenths inches by ten inches long secures into the panel with two three-quarter-inch diameter by six-inch heavy stud anchors. An attachment angle connects the assembly with typical five-sixteenths-inch fillet welds. The connection is spaced at five feet on center with a minimum of four per panel.
TYPICAL INTERMEDIATE CONNECTION @ 5'-0" O.C. (MIN. (4) PER PLANEL) ATTACHMENT ANGLE - SEE ABV EMBED ANGLE - L 5" x 3 1/2" x 5/16" x 10" w/ (2) [+6$ EMBED PLATE - SEE ABV 1 1/2" NON-SHRINK GROUT CONC TILT-UP PANEL CONC FOOTING
