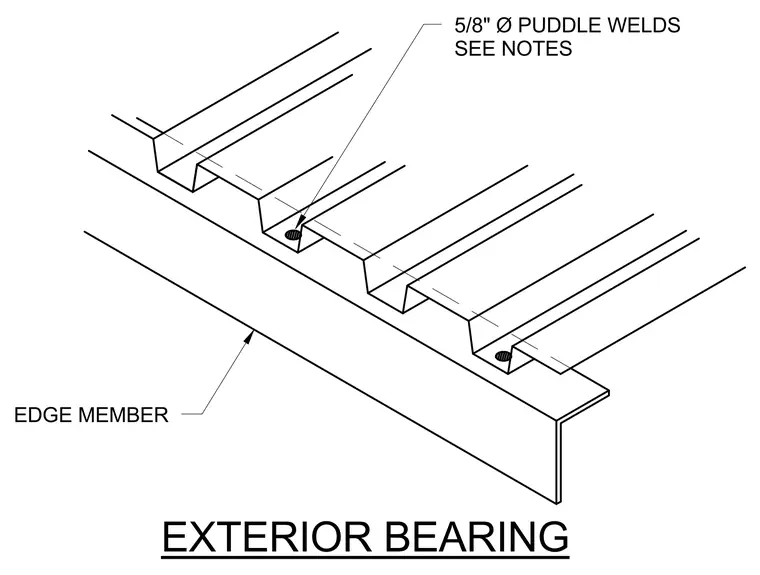

Exterior bearing condition of a metal deck supported by an edge member. The metal deck flutes rest directly on the structural edge member and are fastened using five-eighths inch diameter puddle welds as specified in the notes.
