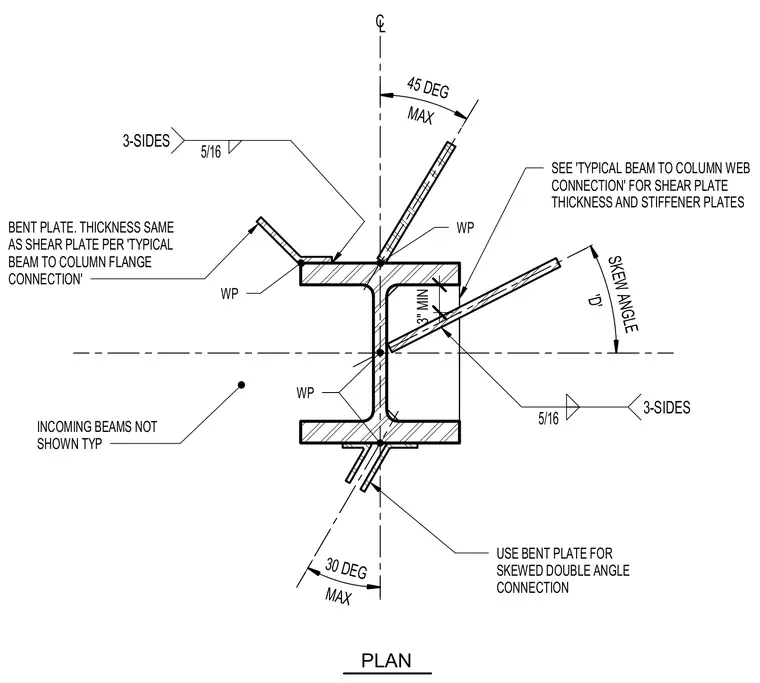

A bent plate connects the skewed beam to the column flange and web with a five-sixteenths inch fillet weld applied on three sides. The bent plate thickness matches the shear plate specified in the typical beam-to-column flange and web connection details. A maximum skew angle of forty-five degrees is accommodated on the flange and thirty degrees on the web, maintaining a three-inch minimum clearance. Work points define the intersecting centerlines for the incoming structural steel members.
5/16 3-SIDES 'D' SKEW ANGLE MAX 45 DEG MAX 30 DEG WP WP WP 5/16 3-SIDES BENT PLATE. THICKNESS SAME AS SHEAR PLATE PER 'TYPICAL BEAM TO COLUMN FLANGE CONNECTION' SEE 'TYPICAL BEAM TO COLUMN WEB CONNECTION' FOR SHEAR PLATE THICKNESS AND STIFFENER PLATES USE BENT PLATE FOR SKEWED DOUBLE ANGLE CONNECTION INCOMING BEAMS NOT SHOWN TYP C L PLAN 3" MIN
