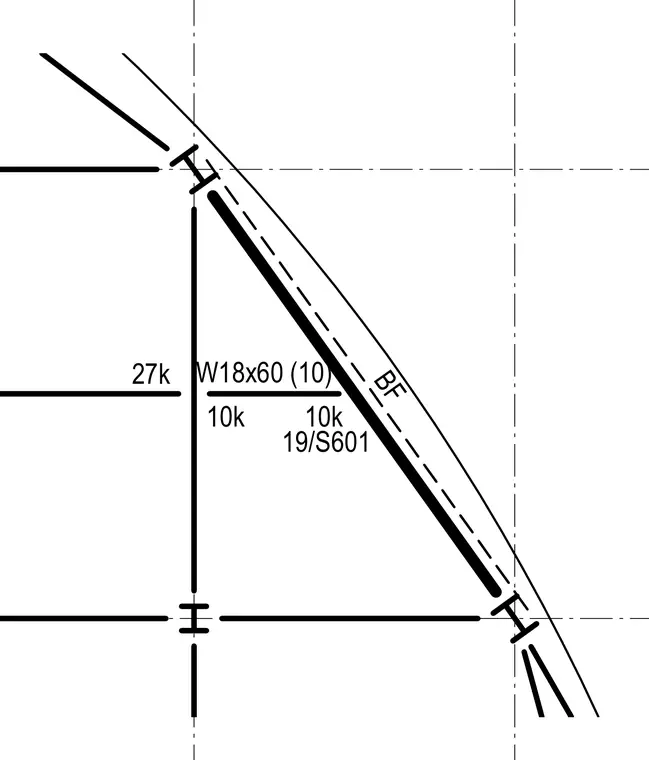

A W18x60 wide-flange steel member connects into the structural framing grid. Load designations indicate capacities of twenty-seven kips and ten kips respectively. The assembly includes grid line references and associated structural notes.
