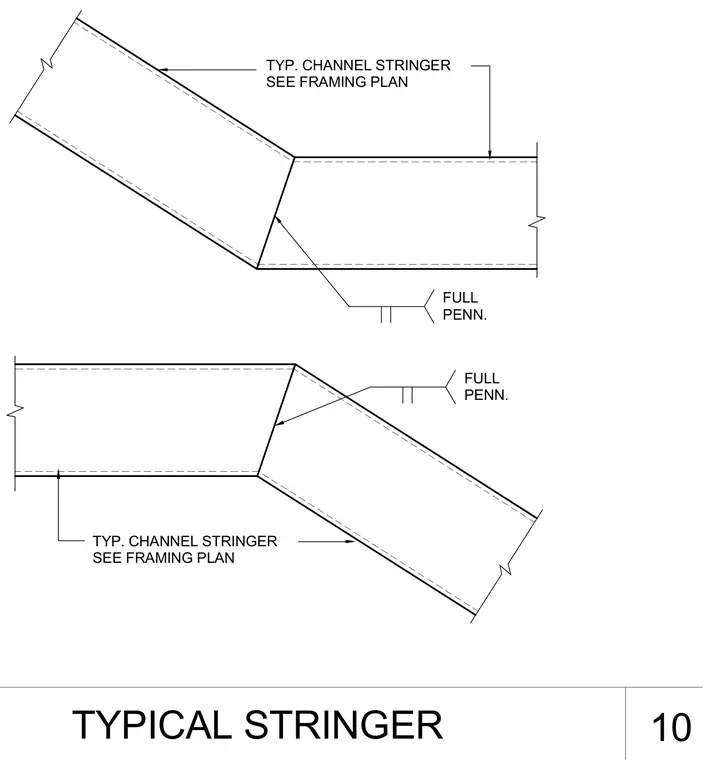

Typical steel channel stair stringers connect at an angle with a full penetration weld as specified on the framing plan. The structural channel sections meet at the directional change of the stair run and are joined by a continuous full penetration weld.
SEE FRAMING PLAN TYP. CHANNEL STRINGER SEE FRAMING PLAN TYP. CHANNEL STRINGER FULL PENN. PENN. FULL TYPICAL STRINGER 10
