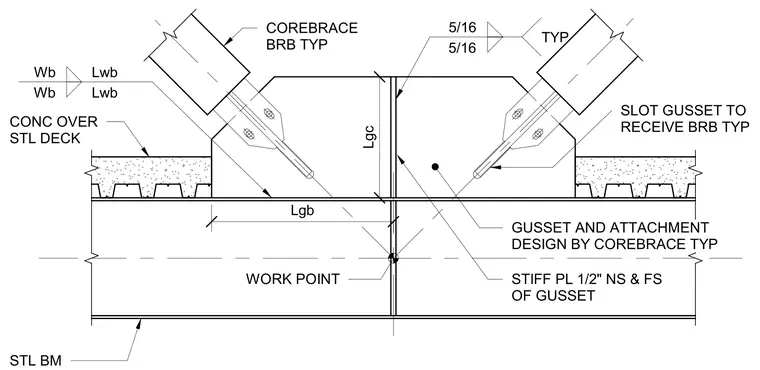

A CoreBrace buckling-restrained brace connects to a gusset plate slotted to receive the brace assembly at a floor level. The gusset plate ties into a structural steel beam supporting concrete over a steel deck. A one-half-inch stiffener plate is welded to the near side and far side of the gusset with five-sixteenth-inch fillet welds. The gusset and brace attachment design is provided by CoreBrace.
WORK POINT COREBRACE BRB TYP 5/16 5/16 TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP SLOT GUSSET TO RECEIVE BRB TYP CONC OVER STL DECK STL BM STIFF PL 1/2" NS & FS OF GUSSET Wb Lwb Wb Lwb Lgb Lgc
