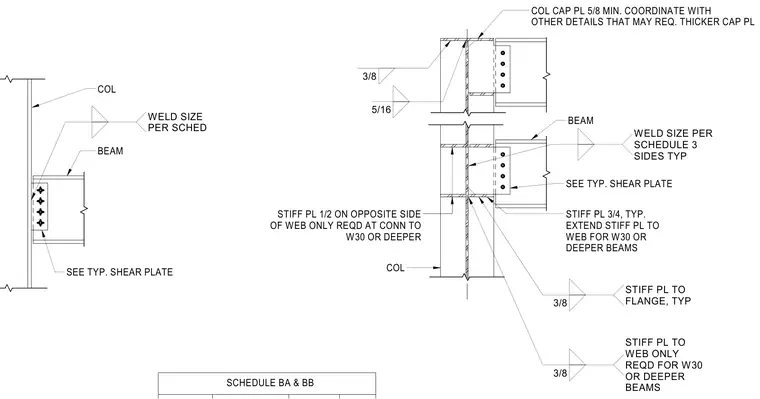

This structural steel connection joins a beam to a column flange using a typical shear plate and a five-eighths-inch minimum column cap plate coordinated with other details. Three-quarter-inch stiffener plates are welded to the beam flange typically with three-eighths-inch fillet welds on three sides, and extended to the web for wide-flange shapes of W30 or deeper. Additional one-half-inch stiffener plates are provided on the opposite side of the web only when required for connections to W30 or deeper columns. Fillet welds of three-eighths-inch and five-eighths-inch secure the components per schedule requirements.
BEAM SEE TYP. SHEAR PLATE COL STIFF PL 1/2 ON OPPOSITE SIDE OF WEB ONLY REQD AT CONN TO W30 OR DEEPER COL CAP PL 5/8 MIN. COORDINATE WITH OTHER DETAILS THAT MAY REQ. THICKER CAP PL BEAM STIFF PL 3/4, TYP. EXTEND STIFF PL TO WEB FOR W30 OR DEEPER BEAMS COL SEE TYP. SHEAR PLATE WELD SIZE PER SCHED WELD SIZE PER SCHEDULE 3 SIDES TYP 3/8 STIFF PL TO WEB ONLY REQD FOR W30 OR DEEPER BEAMS 3/8 STIFF PL TO FLANGE, TYP 3/8 5/16 SCHEDULE BA & BB
