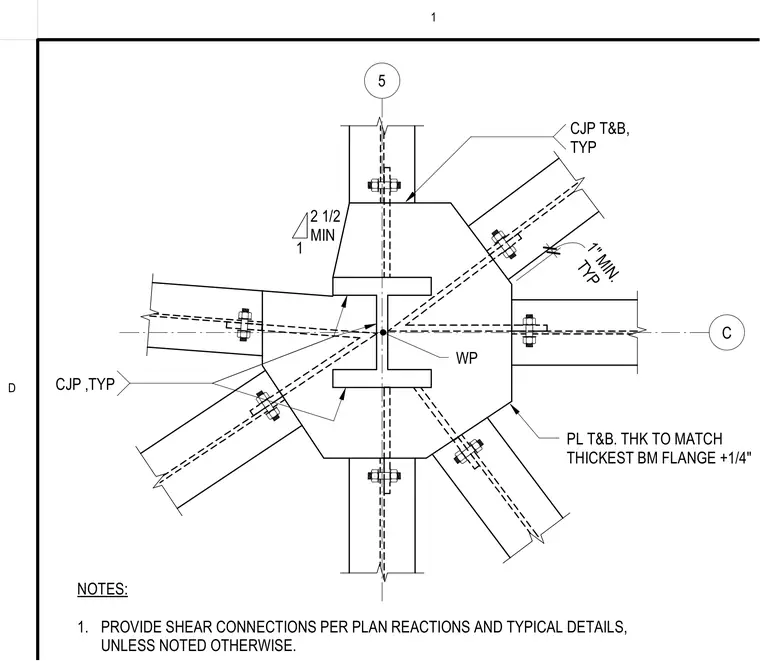

Multiple structural steel framing members converge at a central column through a multi-sided gusset plate connection. Top and bottom plates feature a thickness matching the thickest connected beam flange plus one-quarter inch. Complete joint penetration welds connect the plates to the members. Typical shear connections are provided per plan reactions with specific edge distances and clearances.
5 C WP NOTES: 1. PROVIDE SHEAR CONNECTIONS PER PLAN REACTIONS AND TYPICAL DETAILS, UNLESS NOTED OTHERWISE. PL T&B. THK TO MATCH THICKEST BM FLANGE +1/4" CJP T&B, TYP CJP ,TYP TYP 1" MIN. 2 1/2 MIN 1 1 D
