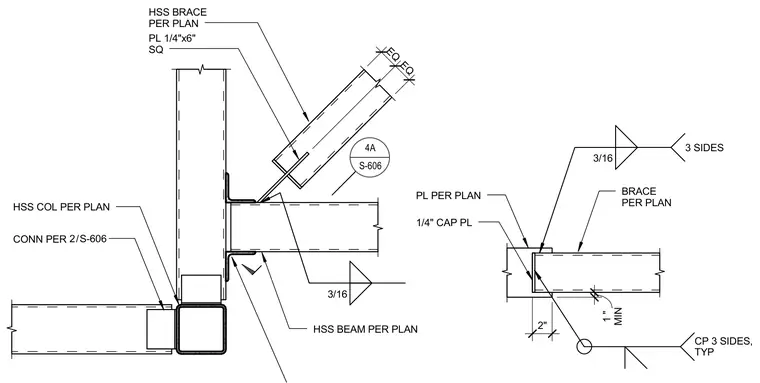

A canopy horizontal brace connection joins a hollow structural section column per plan to a hollow structural section beam per plan. A quarter-inch thick plate is inserted and welded into the slotted hollow structural section brace with three-sixteenths inch fillet welds on three sides. A quarter-inch cap plate is welded to the members, and additional connections are detailed per sheet S-606.
HSS COL PER PLAN PL 1/4"x6" SQ EQ EQ HSS BRACE PER PLAN HSS BEAM PER PLAN 3/16 CONN PER . / 2 S-606 4A S-606 PL PER PLAN BRACE PER PLAN 3/16 3 SIDES MIN 1 " 2" 1/4" CAP PL CP 3 SIDES, TYP
