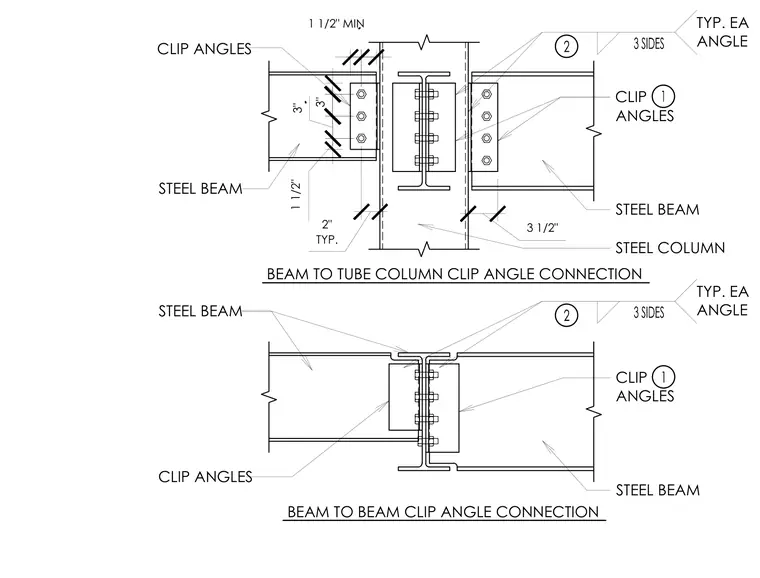

Typical bolted clip angle connections for steel framing members. Steel beams connect to a structural steel tube column and to another steel beam using structural clip angles fastened with bolts. Dimension callouts provide standard spacing clearances for edge distances and bolt arrangements.
TYP. EA ANGLE STEEL BEAM BEAM TO BEAM CLIP ANGLE CONNECTION CLIP ANGLES STEEL BEAM CLIP ANGLES BEAM TO TUBE COLUMN CLIP ANGLE CONNECTION 3" 3" 1 1/2" MIN 1 1/2" 2" TYP. STEEL BEAM CLIP ANGLES 3 1/2" STEEL COLUMN STEEL BEAM CLIP ANGLES TYP. EA ANGLE
