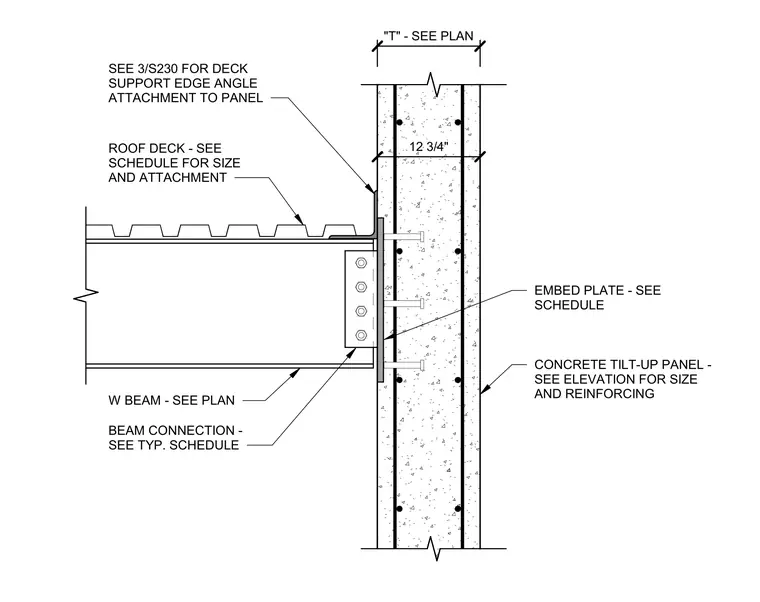

A wide-flange beam connects to a concrete tilt-up panel using a steel embed plate anchored into the concrete. The beam is secured to the embed plate with a bolted connection, with the specific bolt configuration and plate size determined by the typical connection schedule. A deck support edge angle is attached to the panel above the beam, providing a seat for the roof deck. The roof deck size and attachment method are specified in the project schedule, while the panel thickness is noted as 12 3/4 inches. The concrete tilt-up panel contains vertical reinforcing bars as indicated in the elevation drawings.
