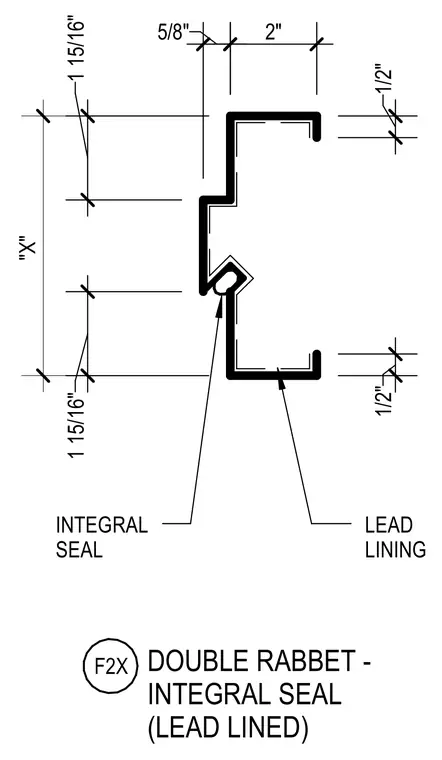

A double rabbet door frame profile features an integrated seal and internal lead lining for radiation shielding. Dimensions include a two inch frame depth with half inch return lips and five eighth inch stop offset. Variable height dimension "X" is flanked by one and fifteen sixteenth inch segments.
1 15/16" 5/8" 2" 1/2" 1/2" 1 15/16" INTEGRAL SEAL LEAD LINING DOUBLE RABBET - INTEGRAL SEAL (LEAD LINED) F2X "X"
