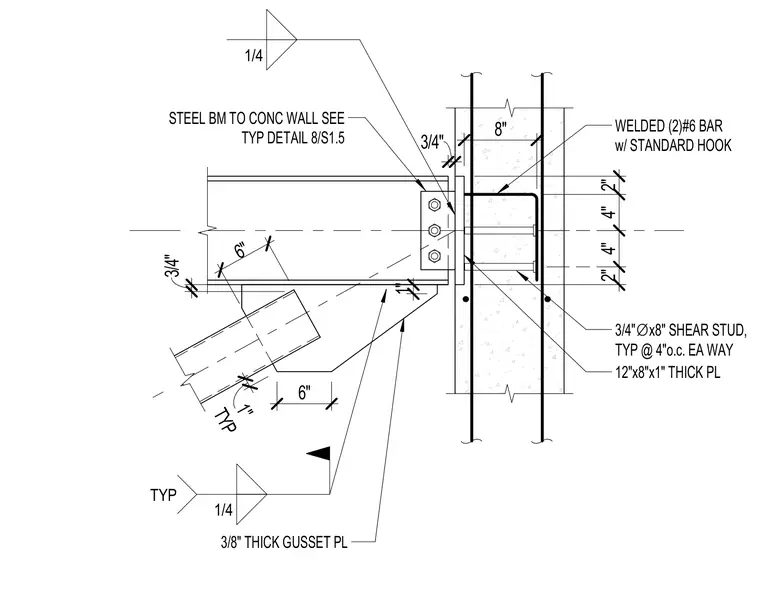

A structural steel beam frames into a reinforced concrete wall using a 3/8-inch thick gusset plate and a 12-inch by 8-inch by 1-inch thick embedded plate. Two 3/4-inch diameter by 8-inch long shear studs are welded to the embedded plate typically at 4 inches on center each way. The connection is reinforced with two #6 bars with standard hooks welded into the concrete wall assembly. A 1/4-inch fillet weld is used typically along the gusset plate and steel member joints.
1/4 3/8" THICK GUSSET PL 1/4 TYP 3/4" 3/4" TYP 1" 6" 1" 6" STEEL BM TO CONC WALL SEE TYP DETAIL 8/S1.5 WELDED (2)#6 BAR w/ STANDARD HOOK 3/4" ∅ x8" SHEAR STUD, TYP @ 4"o.c. EA WAY 2" 4" 4" 2" 8" 12"x8"x1" THICK PL
