Structural · S-65VWW

Haunched Wide Flange Beam Connection and Stiffener Detail

Materials

Connections

Welded Connection Rebar Splice / Development

About this detail

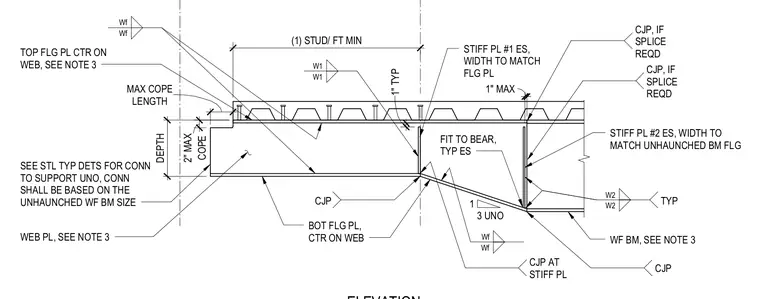

This structural steel connection details a haunched wide flange beam bearing on a support with a maximum two-inch cope length and a one-inch typical clearance. The assembly incorporates top and bottom flange plates centered on the web, a web plate, and stiffener plates on each side sized to match the flange plates. Complete joint penetration welds join the haunch and plates, with splices specified as required. Shear studs are distributed at a minimum of one stud per foot along the top flange supporting a metal deck.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
