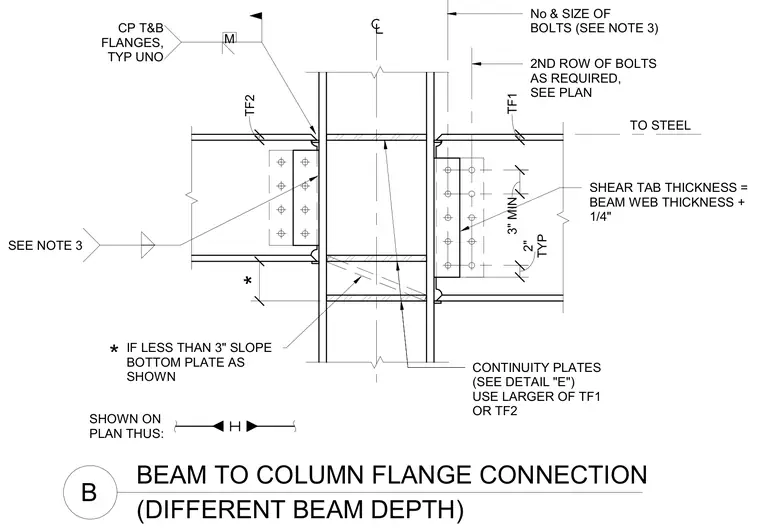

A moment connection joins steel beams of different depths to a steel column flange. The connection utilizes bolted shear tabs at the beam webs, with the shear tab thickness equal to the beam web thickness plus one-quarter inch, and a second row of bolts as required by plan. Continuity plates are installed at the top and bottom flange levels using the larger thickness of the two connecting beam flanges. Fillet welds secure the continuity plates to the column flanges typically unless noted otherwise. Sloped bottom plates are detailed where slopes are less than three inches.
BEAM TO COLUMN FLANGE CONNECTION (DIFFERENT BEAM DEPTH) B TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED, SEE PLAN IF LESS THAN 3" SLOPE BOTTOM PLATE AS SHOWN CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICKNESS = BEAM WEB THICKNESS + 1/4" * SHOWN ON PLAN THUS: * 3" MIN TYP 2" TF2 TF1 CP T&B FLANGES, TYP UNO M SEE NOTE 3
