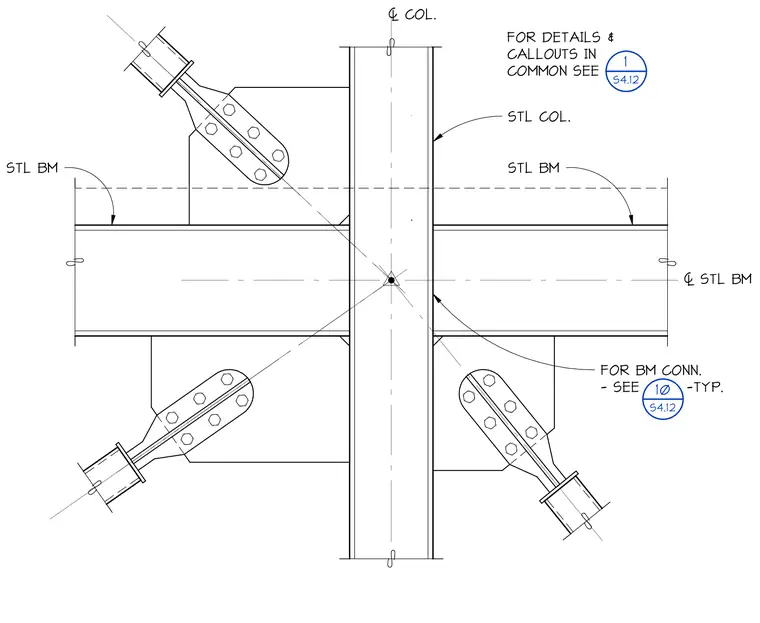

A steel column intersects with steel beams framed on both sides and diagonal brace members connected via gusset plates. The diagonal braces utilize bolted connections to gusset plates welded to the column and beam web interfaces. Typical beam connections are referenced to sheet S4.12 for additional detail. Common details and callouts are likewise cross-referenced to sheet S4.12.
, COL. STL COL. STL BM FOR BM CONN. - SEE -TYP. 10 S4.12 STL BM FOR DETAILS & CALLOUTS IN COMMON SEE 1 S4.12 , STL BM
